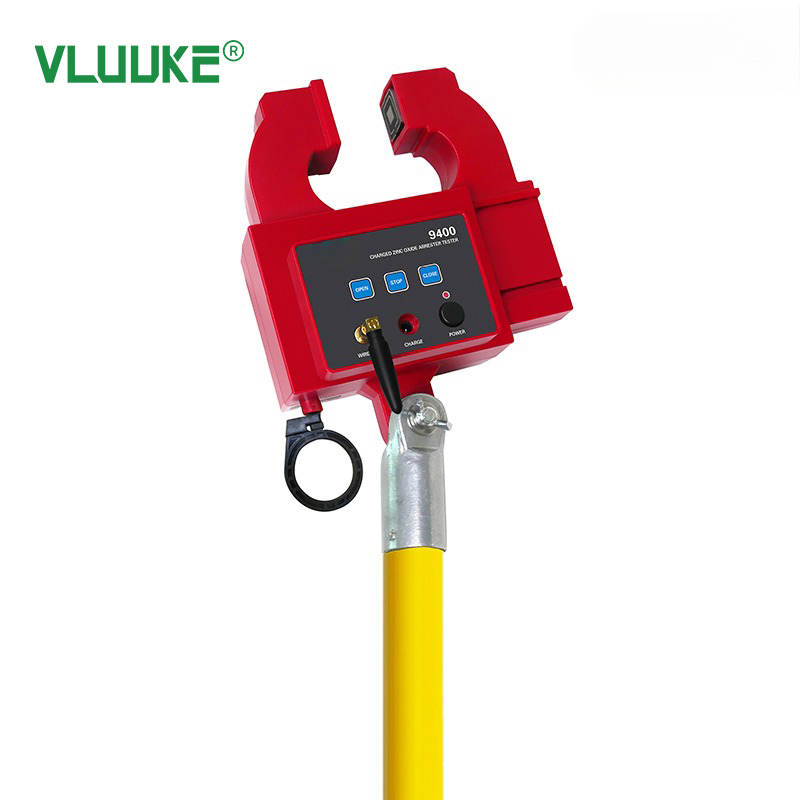

VKCR9400 Zinc Oxide Lightning Arrester Clamp Live Tester

1. There is no need to cut off power supply during the test, no need to remove the arrester, safe and fast to operate.

2. The current clamp with strong anti-interference ability, and with microampere level leakage current test ability, which can test 1uA weak current, alsocan be used as high accurate clamp ammeter.

3. Adopt wireless communication mode, the master instrument can close or open the detector remotely, check the working condition of the clampjawand reading current data.

4. The detector can be used to connected with insulation rod, especially convenient for testing

Power Supply	Host: DC 7.4V 2000mAh rechargeable lithium battery, full charged voltage of battery is about 8.4V. Detector: DC 7.4V 2600mAh rechargeable lithium battery, full charged voltage of battery is about 8.4V.
Display Mode	3.5 inch true-color screen; display area: 71mm×53mm
Measurement Method	Clamp type CT
Clamp Jaw Size	Φ40mm
Measurement Range	AC 0.000mA~300mA (True RMS)
Max. Solution	1uA
Measurement Accuracy	±1%rdg±8dgt (23℃±5℃, below 80%RH)
Wireless Communication Method	433MHz wireless communication
Wireless Transmission Distance	30m
Tester Size	Host: 195mm×100mm×45mm; Detector: 208mm×131mm×90mm
Weight	Host: about 400g; detector: about 1220g; total weight: about 7000g (include insulating rod and accessory)
Sampling Rate	2 times/second
Memory	200 groups, "HOLD" symbol prompts during the procedure of store.
Data Hold	In test mode, press the HOLD key to hold and store the data. "HOLD" symbol display, and then press the HOLD key to cancel.
Data Access	"READ" symbol indicates that the stored data can be viewed.
Overflow Display	Overrange overflow function: "OL" symbol display
No Signal Indication	When the host receiver does not receive a signal from the detector, it cannot display the current status of the detector.
Automatic Shutdown	The tester will shutdown automatically to reduce battery consumption after 10 minutes of startup.
Battery Voltage	When battery voltage is lower than 7.8V, low battery voltage symbol displays to remind the tester need to be charged.
Consumption	Host: 30mA (standby); 100mA (working); receiver: 100mA
Line Voltage	Below 35kV
Interference	No 433MHz same frequency signal interference.
Telescopic Insulating Rod	4 PCS touch-tone telescopic insulating rod (extension state 5m, contraction state 1.5m, outer diameter φ44mm)
Insulation Strength	Single section insulating pole AC110kV/rms, Between the shell of the high voltage detector and the iron core: AC1000V/rms
Working Temperature & Humidity	-20℃~40℃; below 80%Rh
Store Temperature & Humidity	-20℃~60℃; below 70%Rh
