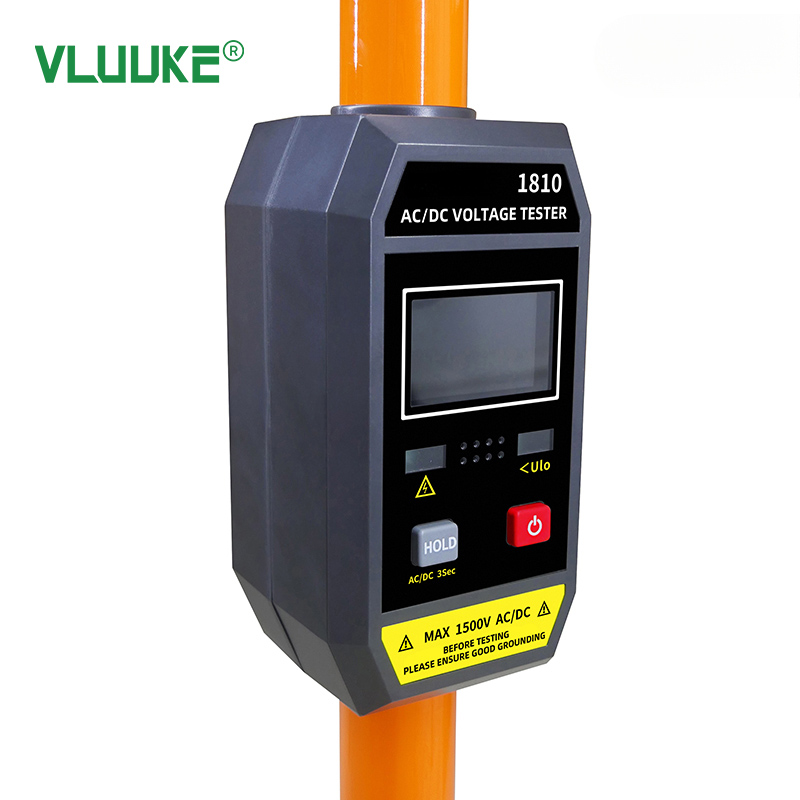

1. Voltage to earth measurement, DC voltage measurement, AC voltage measurement, induced voltage measurement, electricity testing alarm.
2. The operation is safe, simple and fast, and with audible and visual alarm function.
3. Equipped with magnet ground line and clamp ground line. Especially suitable for line inspection and maintenance on subway.
Power Supply | AA alkaline battery X6PCS |
LCD Size | 47mm×28.5mm |
Voltage Measurement Range | AC/DC 30V~1500V |
Voltage Measurement Accuracy | ±2%±8dgt |
Voltage Solution | 1V |
Frequency Measurement Range | 50Hz/60Hz |
Input Resistance | About 150MΩ |
Test Current | ＜0.02mA/1500V |
Alarm Indication | During the test, voltage＜36V, green indication light remains on; |
Automatic Shutdown | The meter will automatically shutdown without any operation after 10 minutes power on. |
Low Battery Voltage Indication | When the battery voltage lower than 7.2V±0.1V, low battery voltage symbol “ |
Meter Size | 1680mm×102mm×83mm |
Length Of Insulating Rod | Shrunk state about 1600mm, stretched state about 5000mm |
Weight | Meter: about 2460g(include battery); Total weight: about 4.5kg(include accessory) |
Insulation Test | Both ends of the insulating rod after stretching: AC 220kV/rms; AC3700V/rms(between exposed metal and plastic shell) |
External Interference | No particularly strong electromagnetic field |
Working Temperature & Humidity | -10℃~40℃; below 80%RH |
Storage Temperature & Humidity | -10℃~60℃; below 70%RH |
