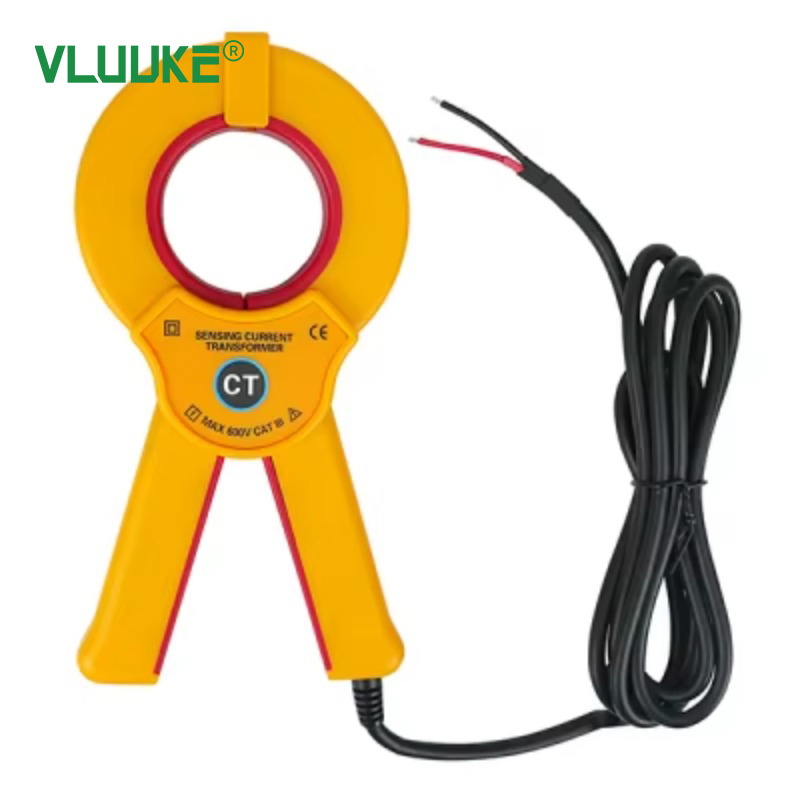

VKCR050A R-Shape Current Clamp
VKCR050A R-Shape Current Clamp
★Range: 0.0A～600A AC
★Accuracy level: 0.5
★Phase error: ≤2°
★Variable ratio: 600:1
★Operating frequency: 40Hz～1kHz
$37.00
  • Features
  • Specifications
  • Model
  • Accessories
  • Docs & Software

1. Clamp structure, no need to interrupt the power supply and disconnect the circuit in testing, easy to operate, fast, safe and reliable.

2. Input current range: 0mA ~ 600A, output signal: mA/A; mV/A; 1A; 5A.

3. Output interface: BNC plug/ 4.0mm double banana plug/φ3.5mm Audio plug /Aviation plug(optional), wire length: 1.5m

4. CT Size: φ50mm. 5. Sensor Dimensions: 200mmX100mmX39mm

6. Weight: 550g

7. Safety Level: CAT III 600V

8. Certificate: ROHS

9. Working temperature: -15°C~50°C

10. The input current, output signal and output interface of the sensor can be customized according to customer requirements.


Model

VKCR050A

Range

0.0A~600A AC

Accuracy Class

0.5

Turn Ratio

600:1

Phase Error

≤2°

Reference Load

≤2.5VA

Frequency

40Hz~1kHz

Clamp Size

Φ50mm

Dimension

200mmX103mmX39mm

Weight

550g
