VKCR007AD AC/DC Clamp Leakage Current Sensor
VKCR007AD AC/DC Clamp Leakage Current Sensor
Accuracy Class：±3.0%FS
Material：Plastic Housing/Core
CT Type：Clamp CT
Safety Standard：CAT III 600V
$40.00
  • Features
  • Specifications
  • Model
  • Accessories
  • Docs & Software

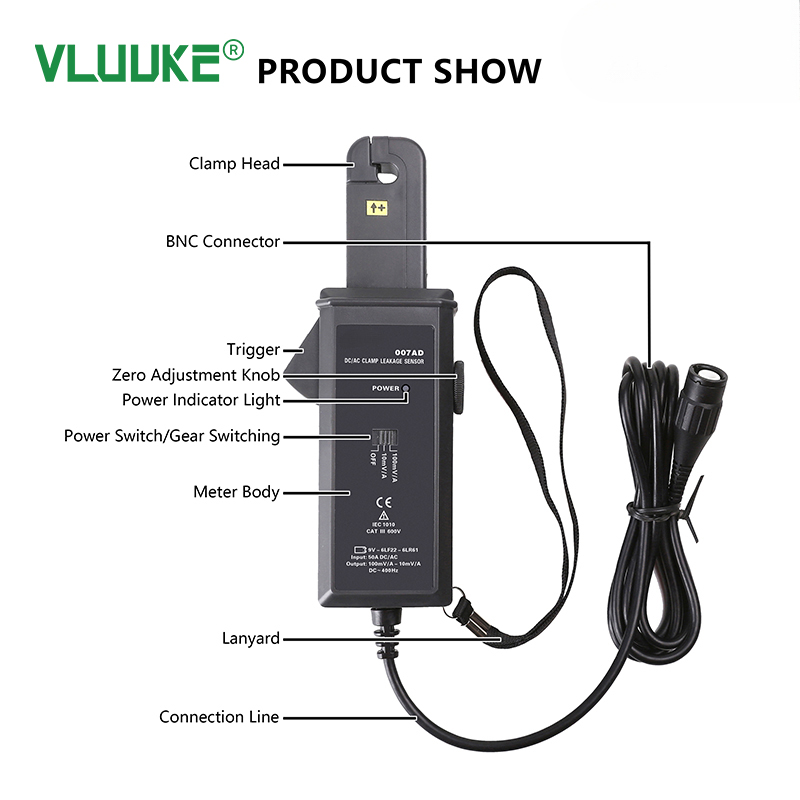

1. Clamp structure, no need disconnect the line being tested, easy to carry and especially suitable for on-site online testing. Non-contact measurement, easy to operate, fast, safe and reliable..

2. Adopts Permalloy core and Hall induction technology, with high performance and high accuracy, high anti-interference ability.

3. Output current or voltage signal, the range, transformation ratio, output interface of the sensor could OEM.

4. Output interface: 1.5m shield wires, the terminal interface: φ3.5mm Audio plug/BNC plug/4.0mm double banana plug (optional).

5. Insulating strength: AC3700V/ms (between the core and coil)

6. Safety class: CATⅢ600V

7. Working temperature: -15°C~50°C.


Model

VKCR007AD

Range

0mA~50A AC/DC

Resolution

1mA

Accuracy Class

±3.0%

Output Signal

10mV/1A or 100mV/1A (manual

Phase Error

≤3°

Reset Mode

ZERO reset rotary knob

Clamp Size

φ7mm

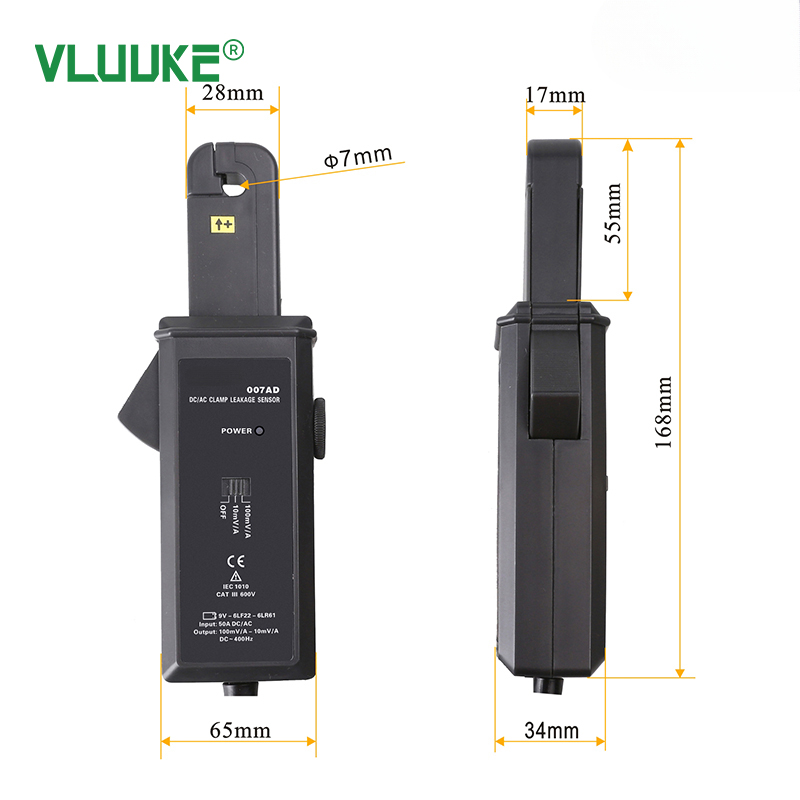

Dimension

168mmX65mmX34mm

Weight

170g

Power Supply

9V DC 6F22
