Features | CT clamp structure |
Features | Detection of current, leakage current, transformation ratio, higher harmonic current, phase, electrical energy, power, power factor, etc. of high and low voltage lines |
Output method | Current sense output |
Jaw size | Φ50mm |
Secondary development Display window | 46*30mm |
Range | AC 0.0mA～1200A |
Resolution | AC 0.1mA |
Accuracy | ±1.0%FS (50Hz/60Hz; 23℃±2℃) The wire is in the center of the jaw |
Phase error | ≤3°(50Hz/60Hz; 23℃±2℃) |
Turns ratio | 4000:1 |
Reference load | RL: 0～10A≤50Ω; 0～100A≤5Ω; 0～1200A≤0.5Ω |
Quality | 300g |

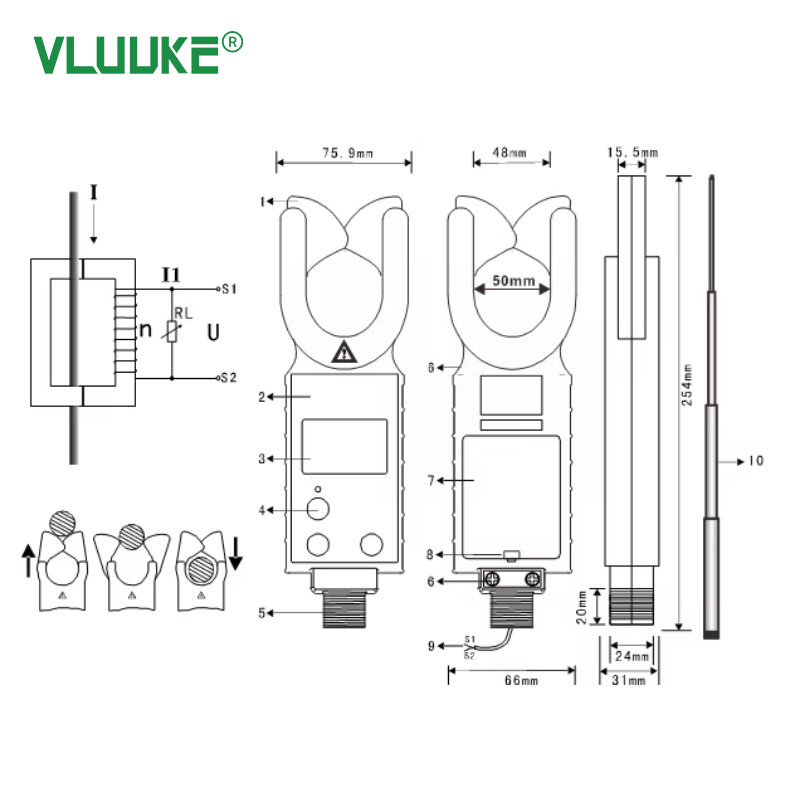

Dimensions | Width, thickness and height 87*37*262mm |
Output Interface | 10cm long, open the upper and lower covers to connect |
Electric field disturbance | When the external electric field 100A is close to 30mm, it is about 10mA |
Wire position | The lead under test is in the center of the jaws |
Current frequency | 45Hz～65Hz (current frequency to be measured) |
Line voltage | AC 60kV and below line test (the telescopic insulating rod should be fully opened) |
Operating temperature | -25º C to +55º C |
Medium strength | AC3700V/rms (between core and shell) |
Current frequency | 45Hz～65Hz (current frequency to be measured) |
