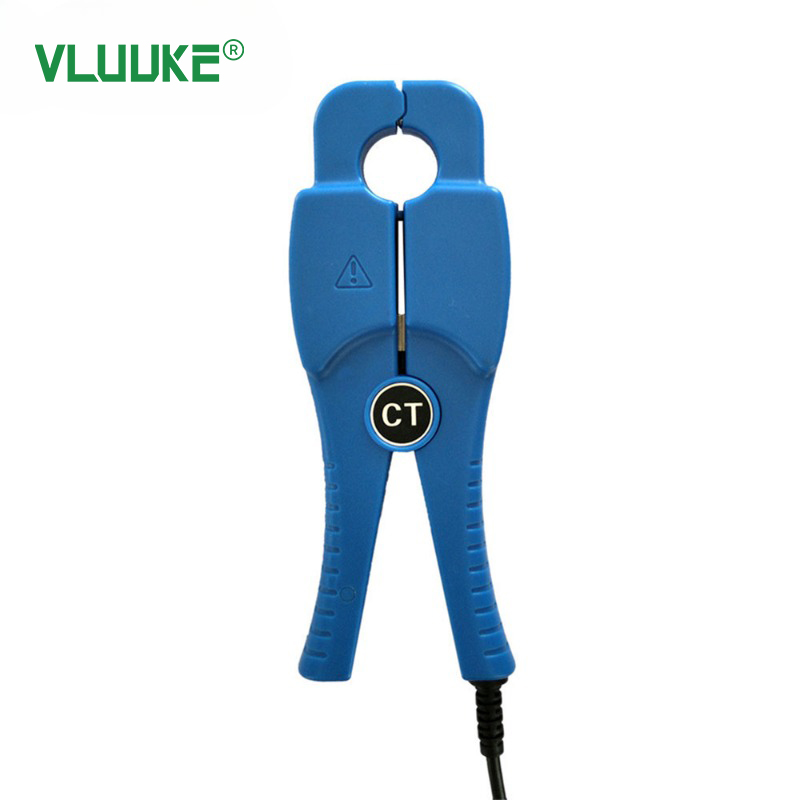

Jaw size

Φ20mm

Range

AC 0～200A

Resolution

AC 0.1mA

Accuracy

±0.2%FS(50Hz/60Hz；23℃±2℃)

Phase error

≤3°(50Hz/60Hz；23℃±2℃)

Turns ratio

3000:1

Reference load

RL：0～2A≤100Ω；0～20A≤50Ω；0～200A≤5Ω

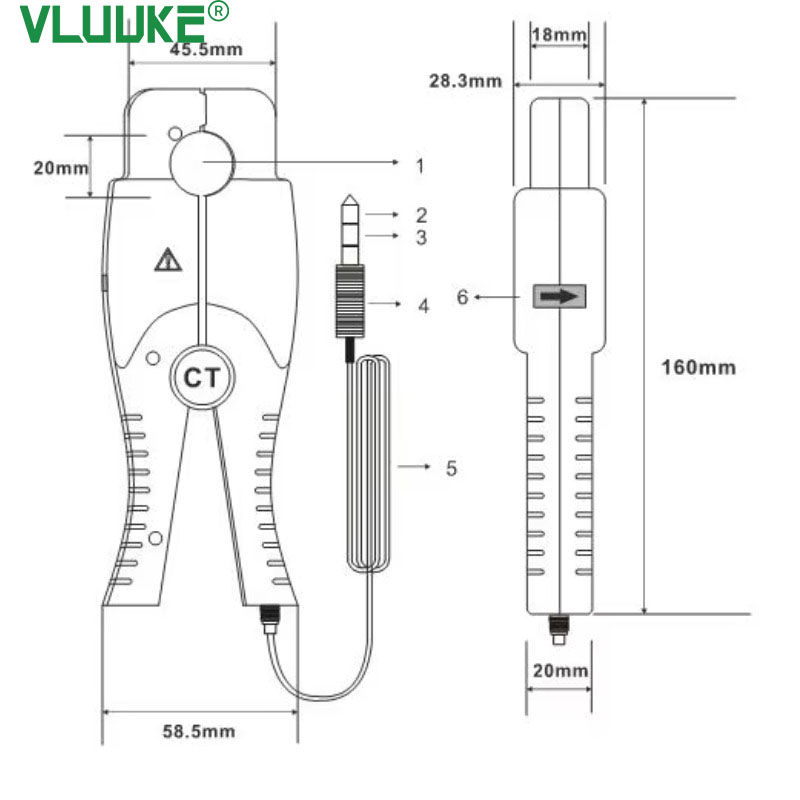

Dimensions

Length 50mm×Thickness 25mm×Height 160mm

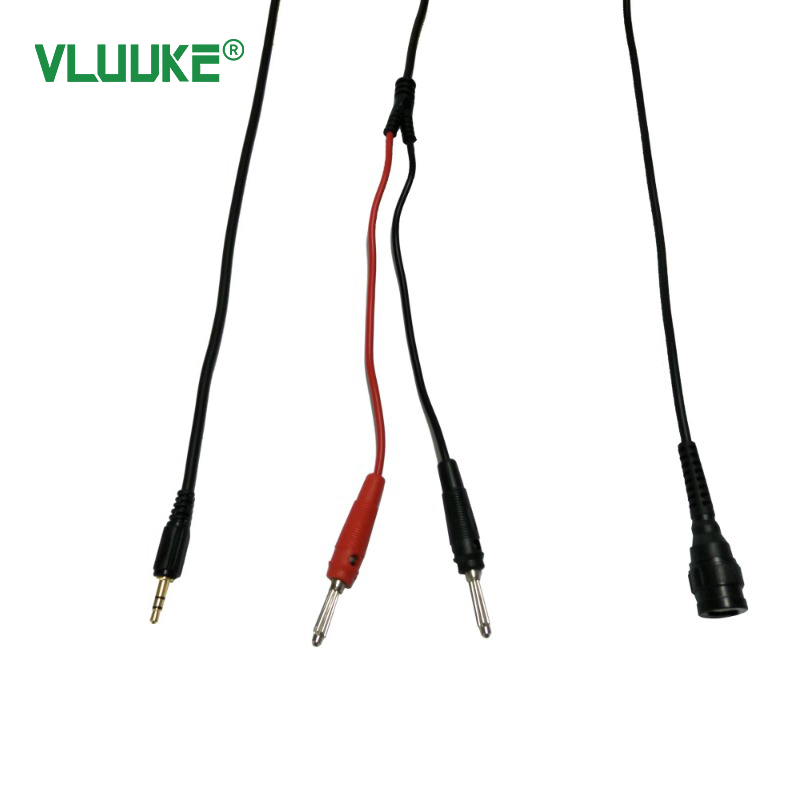

Output Interface

3.5mm audio plug

Output cable length

2m

Quality

260g

Output method

Current sense output

Shell material

ABS resin, flame retardant grade 94V0

Line voltage

Tested at 600Vac (insulated wire) 30Vac (bare wire)

Operating temperature

-25º C to +55º C

Insulation resistance

100 MΩ @ 500Vdc

Medium strength

AC3700V/rms (between core and shell)

Current frequency

45Hz～65Hz (current frequency to be measured)

Frequency characteristics

10Hz～100kHz
