VK3076 Insulating Oil Dielectric Strength Tester‌
Transformer Test Series
Home > Products > Transformer Test Series
VK3076 Insulating Oil Dielectric Strength Tester‌
  • VK3076 Insulating Oil Dielectric Strength Tester‌
  • VK3076 Insulating Oil Dielectric Strength Tester‌
  • VK3076 Insulating Oil Dielectric Strength Tester‌
  • VK3076 Insulating Oil Dielectric Strength Tester‌
  • VK3076 Insulating Oil Dielectric Strength Tester‌
  • VK3076 Insulating Oil Dielectric Strength Tester‌
VK3076 Insulating Oil Dielectric Strength Tester‌
VK3076 Insulating Oil Dielectric Strength Tester‌
1.Adopts high-capacity MCU control with watchdog circuit, stable running and no system crash.

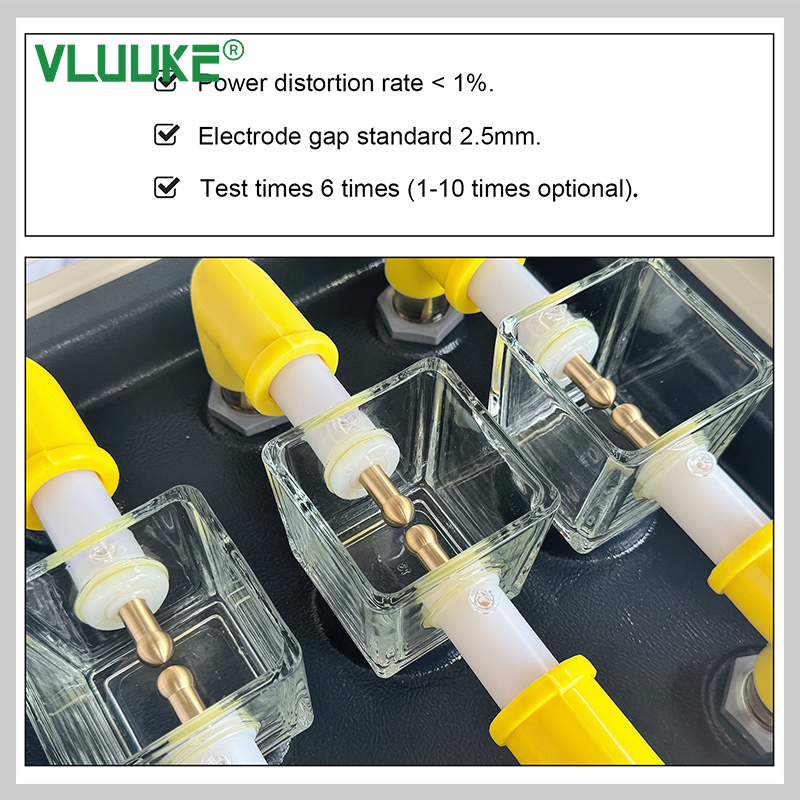

2.One-piece special glass oil cup effectively prevents oil leakage and external interference.
3.Direct high-voltage sampling into A/D converter reduces analog circuit errors for higher test accuracy.
4.Equipped with overcurrent, overvoltage and short-circuit protection, strong anti-interference and excellent EMC performance.
$2662.00
  • Features
  • Specifications
  • Model

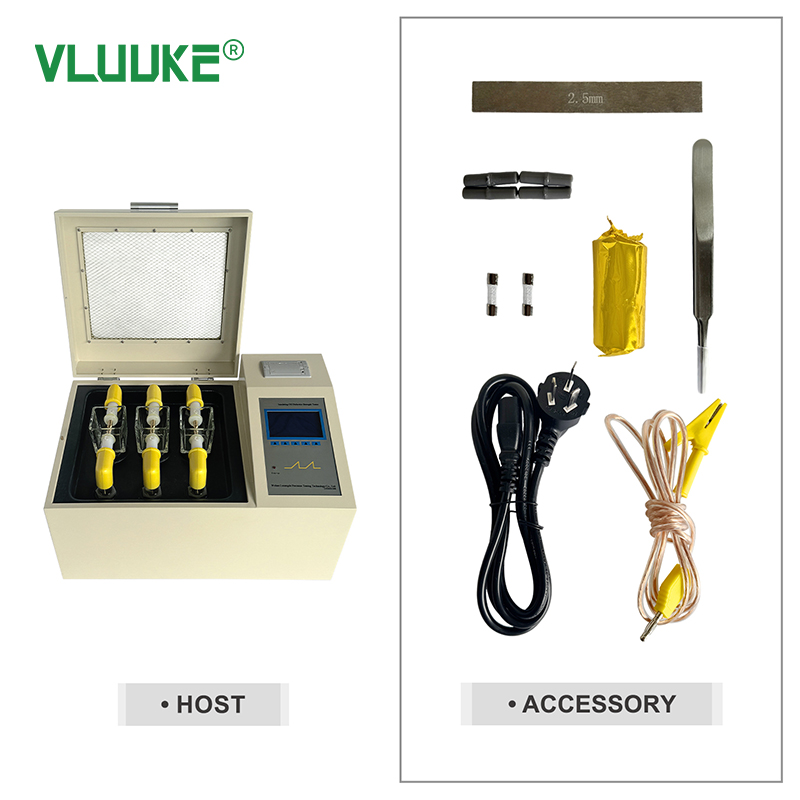

  • Accessories
  • Docs & Software

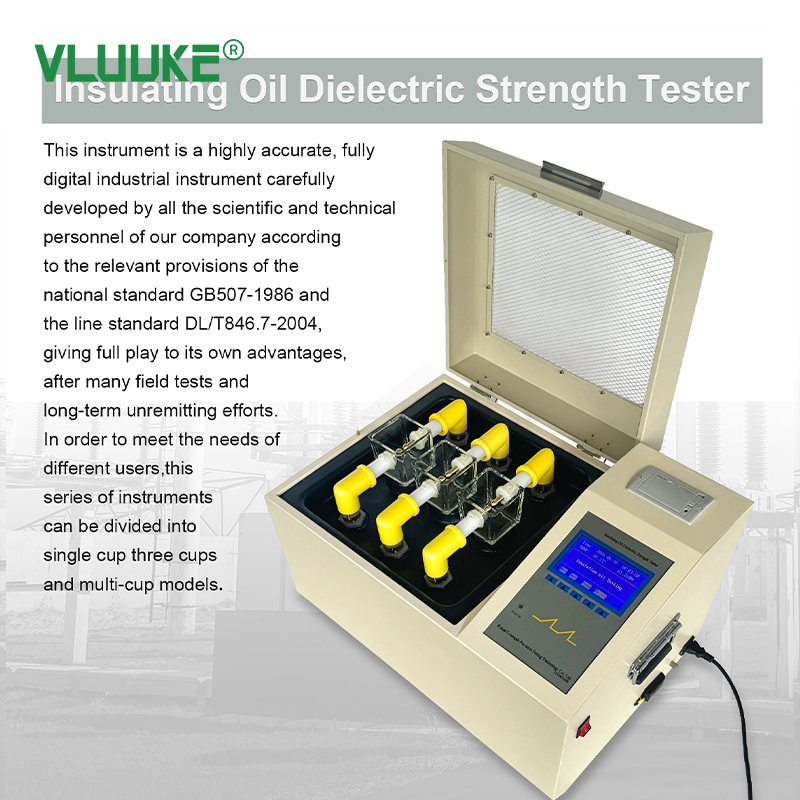

This instrument is a highly accurate, fully digital industrial instrument carefully developed by all the scientific and technical personnel of our company according to the relevant provisions of the national standard GB507-1986 and the line standard DL/T846.7-2004, giving full play to its own advantages, after many field tests and long-term unremitting efforts. In order to meet the needs of different users, this series of instruments can be divided into single cup three cups and multi-cup models. The instrument is easy to operate and beautiful in shape. Due to the use of automatic digital microcomputer control, the measurement accuracy is high, anti-interference ability is strong, safe and reliable.

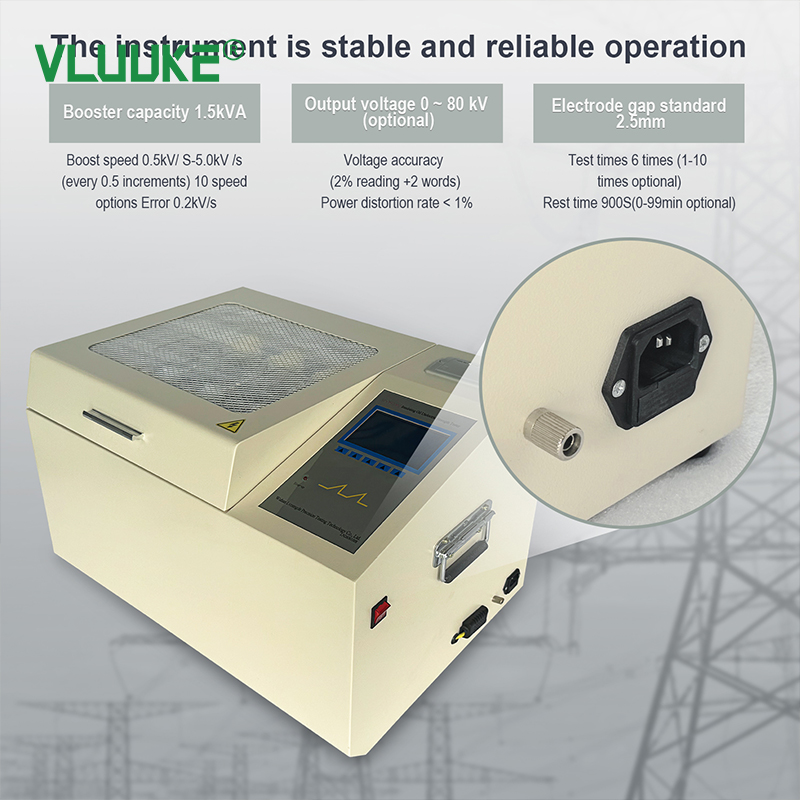

Booster capacity
1.5kVA
Rest time
900S(0-99min optional)

Boost speed
0.5kV/ S-5.0kV /s (every 0.5 increments) 10 speed options
Error 0.2kV/s
Interval stationary time
300S(0-99min optional)

Output voltage
Output voltage
Mixing time
15S (0-255min optional)

Voltage accuracy
 (2% reading +2 words)
 Display mode
Large-screen LCD Chinese character display

Power distortion
rate < 1%

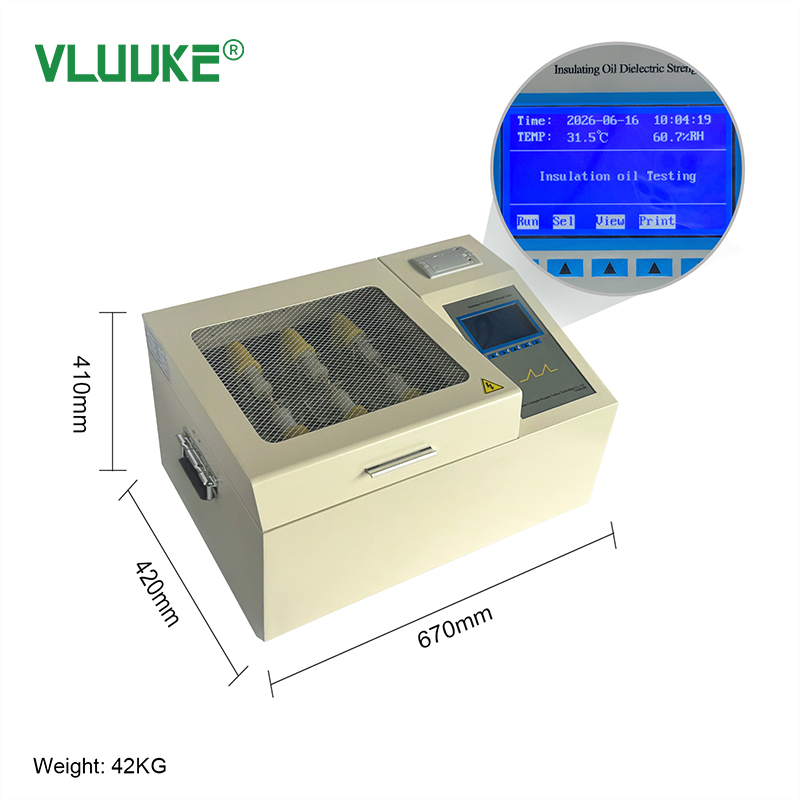

Overall dimensions
670mm× 420mm × 410mm

Electrode gap standard
2.5mm
Instrument weight
42 kg

Test times
6 times
The ambient temperature ranges
from 0 to 40 ° C

Relative humidity
≤ 85%
Power supply frequency
50 Hz ± 5 Hz

Working power
AC 220V ± 20%
Power consumption
< 200 W
