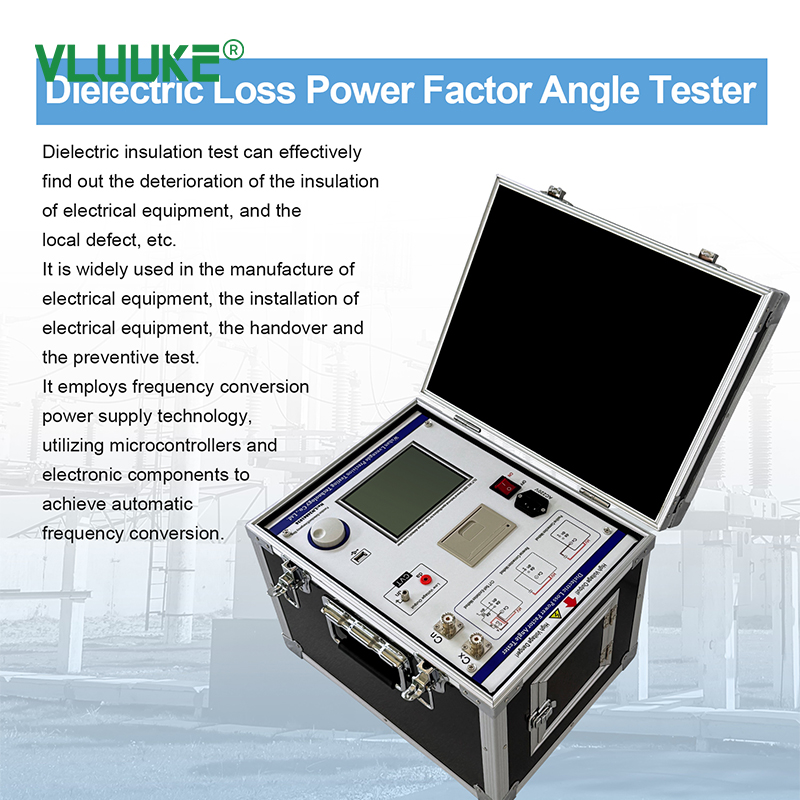

Dielectric insulation test can effectively find out the deterioration of the insulation of electrical equipment, and the local defect, etc. It is widely used in the manufacture of electrical equipment, the installation of electrical equipment, the handover and the preventive test.

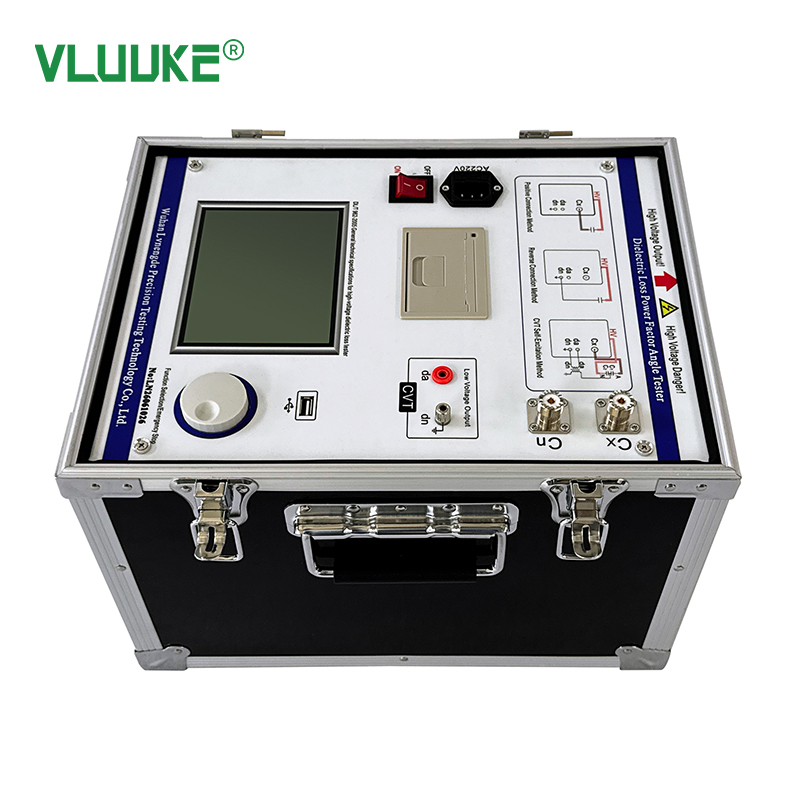

The IT-DEL10 Dielectric Loss Power Factor Angle Tester employs frequency conversion power supply technology, utilizing microcontrollers and electronic components to achieve automatic frequency conversion, analog-to-digital conversion, and data processing. This results in strong interference resistance, rapid testing speed, high precision, and user-friendly operation.

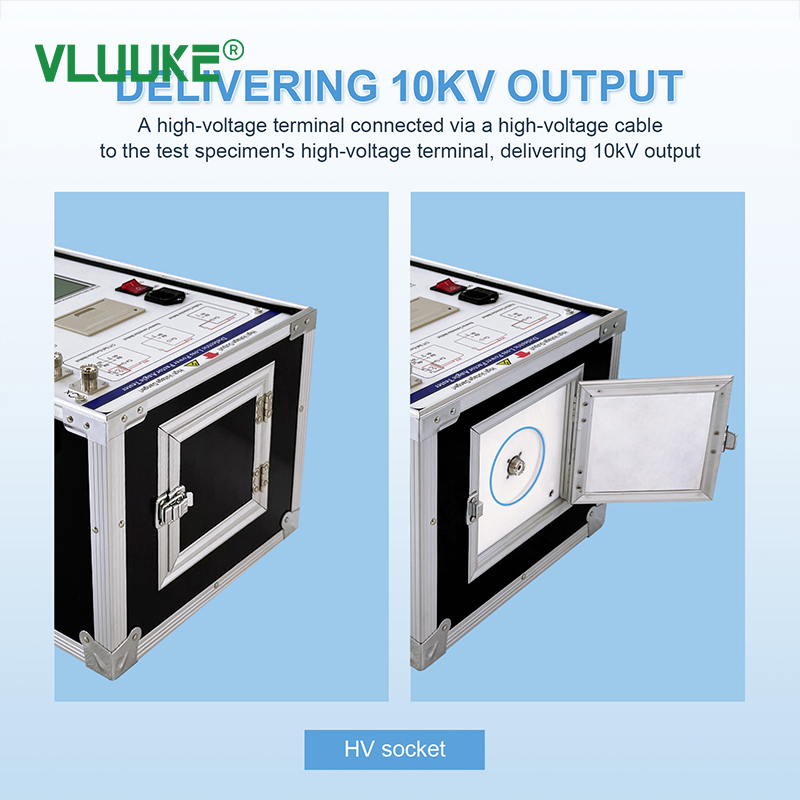

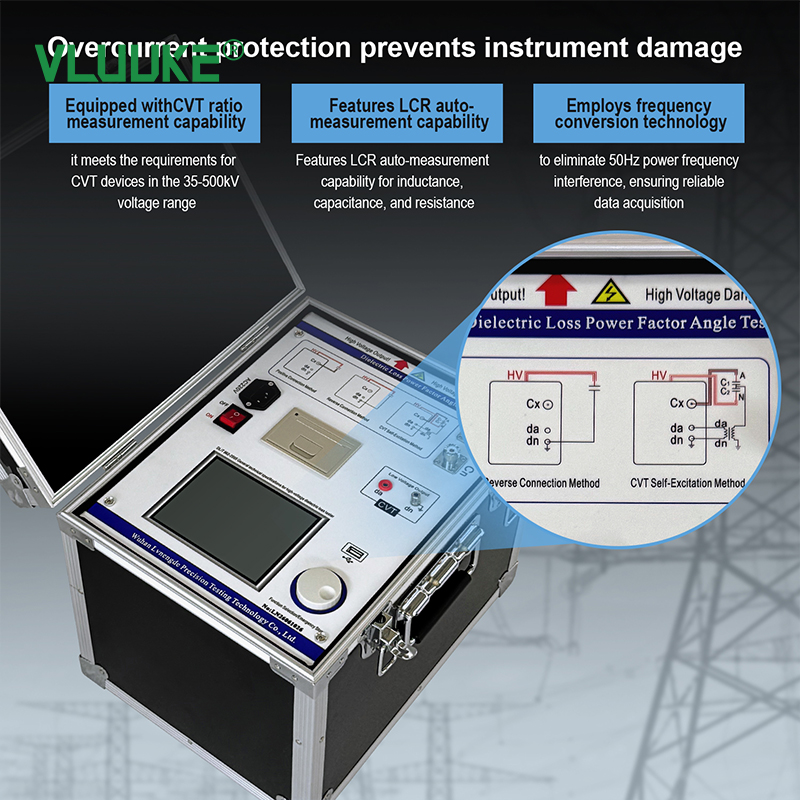

The frequency conversion power supply adopts a high-power switching power supply, output single frequency 50Hz/60Hz and double frequency 47.5Hz\52.5Hz, 45.0Hz\55.0Hz, 57.5Hz\62.5Hz, 55.0Hz\65.0Hz pure sine wave, automatic pressure, can provide up to 12kV voltage; automatic filtering of 50Hz interference, suitable for substations and other sites with high electromagnetic interference.
