I. Performance Features

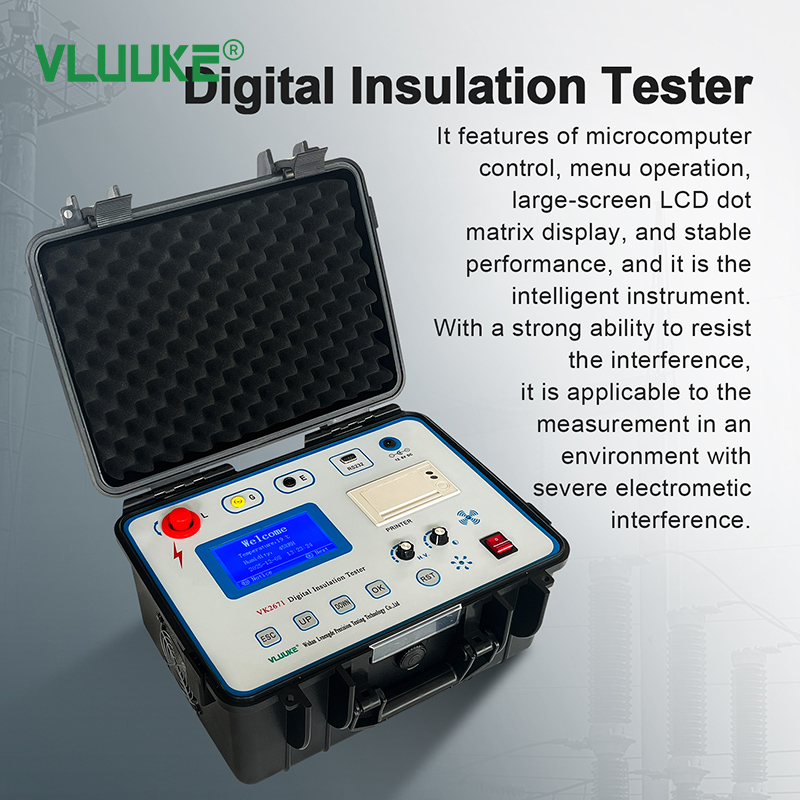

1) It features of microcomputer control, menu operation, large-screen LCD dot matrix display, and stable performance, and it is the intelligent instrument.
2) With a strong ability to resist the interference, it is applicable to the measurement in an environment with severe electromagnetic interference.

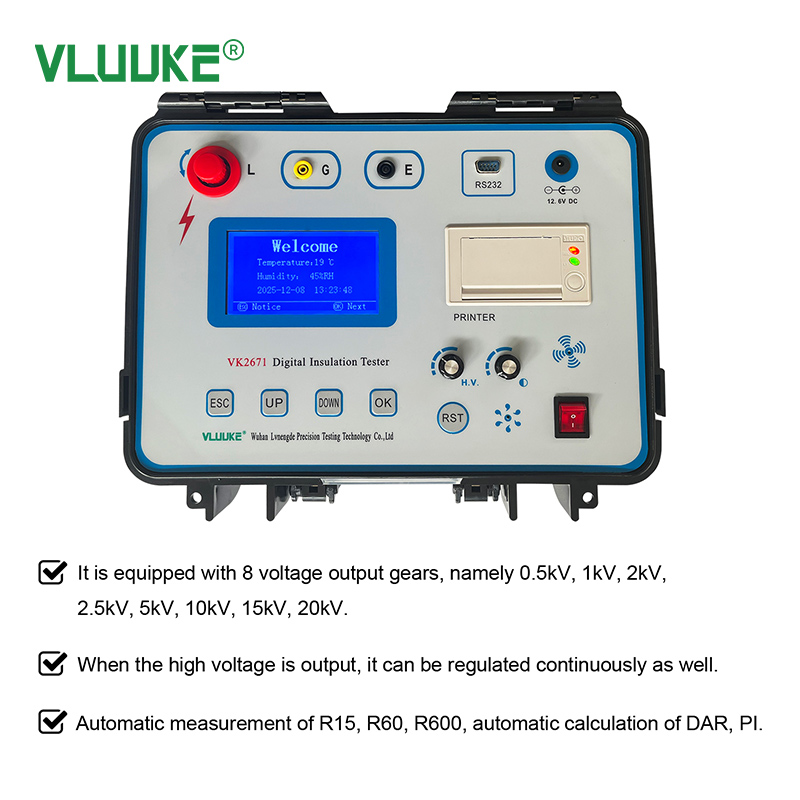

3) It is equipped with 8 voltage output gears, namely 0.5kV, 1kV, 2kV, 2.5kV, 5kV, 10kV, 15kV, 20kV.
4) When the high voltage is output, it can be regulated continuously as well.
5) Automatic measurement of R15, R60, R600, automatic calculation of DAR, PI.
6) It has strong load capacity, and the short-circuit current is about 5mA.
7) Measuring range: 0 to 5TΩ, and it can switch the range automatically.
8)The combination of simulation bar pointer and digital display can show the change trend of data and accurate measuring results.
9) The testing time can be displayed at any time, and the buzzer will automatically tweet for reminder at every 15 seconds.
10) After the completion of measuring, it will discharge the high voltage automatically, and the discharging time of high voltage is no more than 30 seconds.
11) It can measure the ambient temperature, air humidity and the date and time of each testing automatically.
12) It can save 60 groups of measuring results, and the data will not be lost for 20 years.

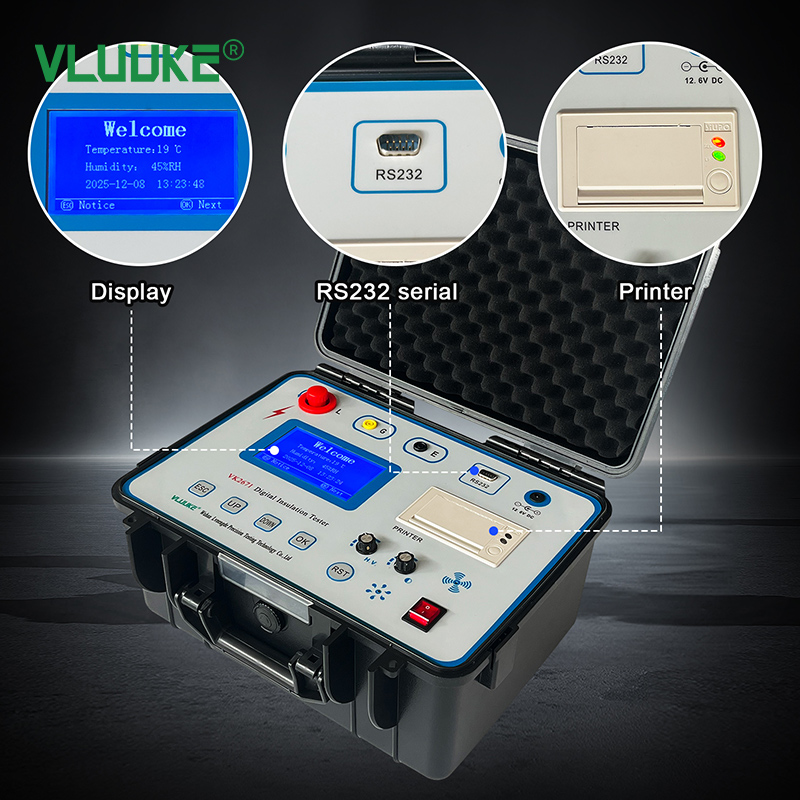

13) It has RS232 serial interface, therefore it can communicate with the computer data.
14) It can print the measuring results, sparing the trouble of meter reading.
15) 5 minutes of operation, the system automatically beepprompt shutdown.
16) It has the comprehensive perfect protection function, therefore the operational reliability is high.
