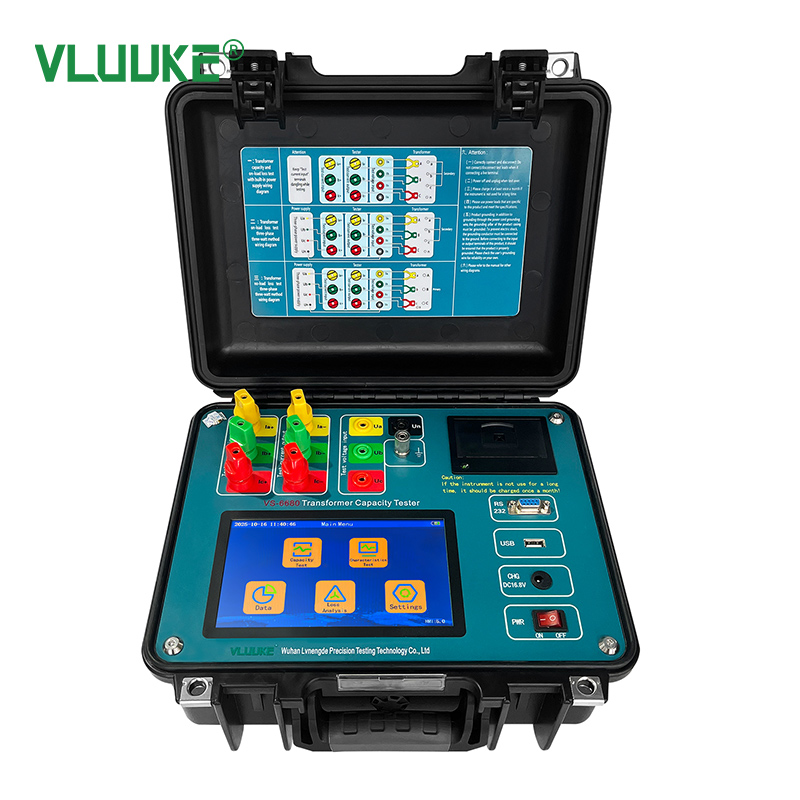

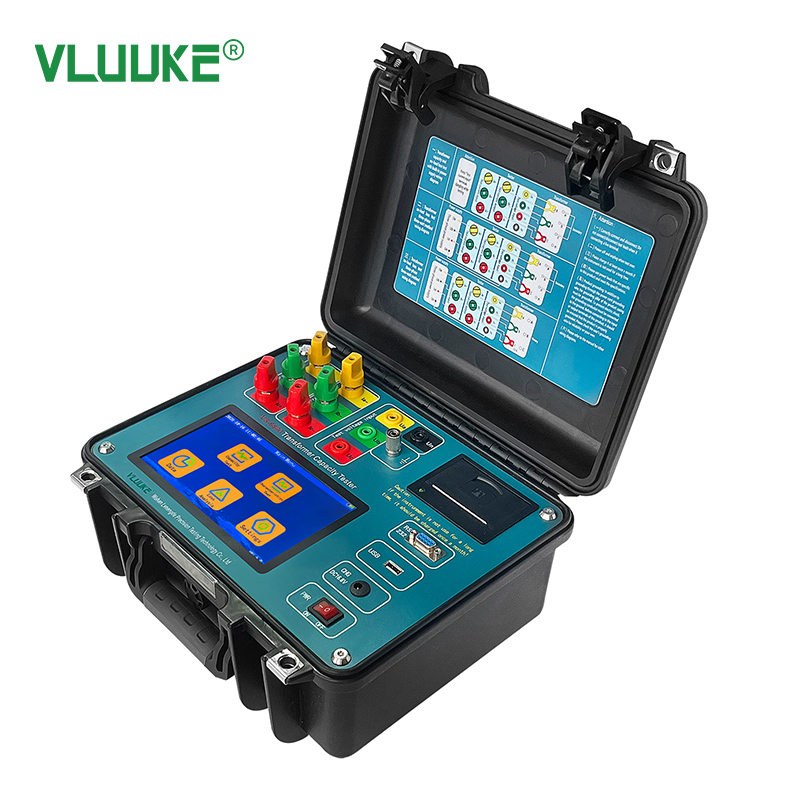

The Transformer Capacity Tester is upgraded based on the original transformer capacity test instrument of our company. It continues the advantages of small volume, simple operation, and convenient use of our original instruments, and comprehensively upgrade the internal processor, data collection system, and national standard data to make the instrument's available range wider and higher test accuracy.

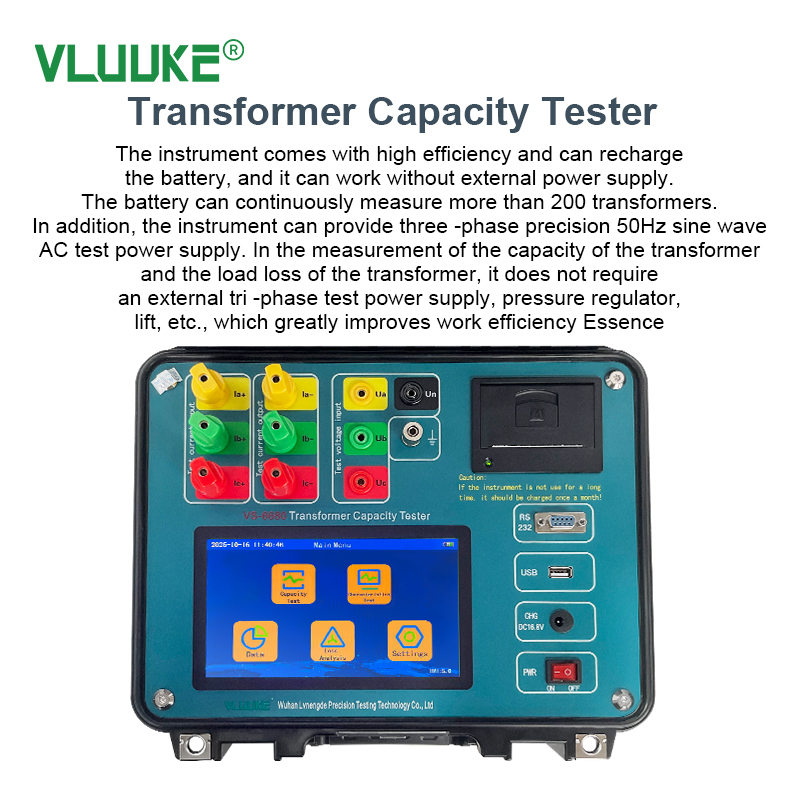

The Transformer Capacity Tester contains the functions of transformer capacity, transformer vacuum load, transformer load loss, and its energy efficiency judgment, and electrical measurement. The instrument comes with high efficiency and can recharge the battery, and it can work without external power supply. The battery can continuously measure more than 200 transformers. In addition, the instrument can provide three -phase precision 50Hz sine wave AC test power supply. In the measurement of the capacity of the transformer and the load loss of the transformer, it does not require an external tri -phase test power supply, pressure regulator, lift, etc., which greatly improves work efficiency Essence
This product has many advantages such as small volume, light weight, high measurement accuracy, good stability, simple operation, and so on. It can completely replace the method of using multiple tables to measure transformer loss and capacity. The wiring is simpler, the test and record are more convenient, making your work efficiency greatly improved.

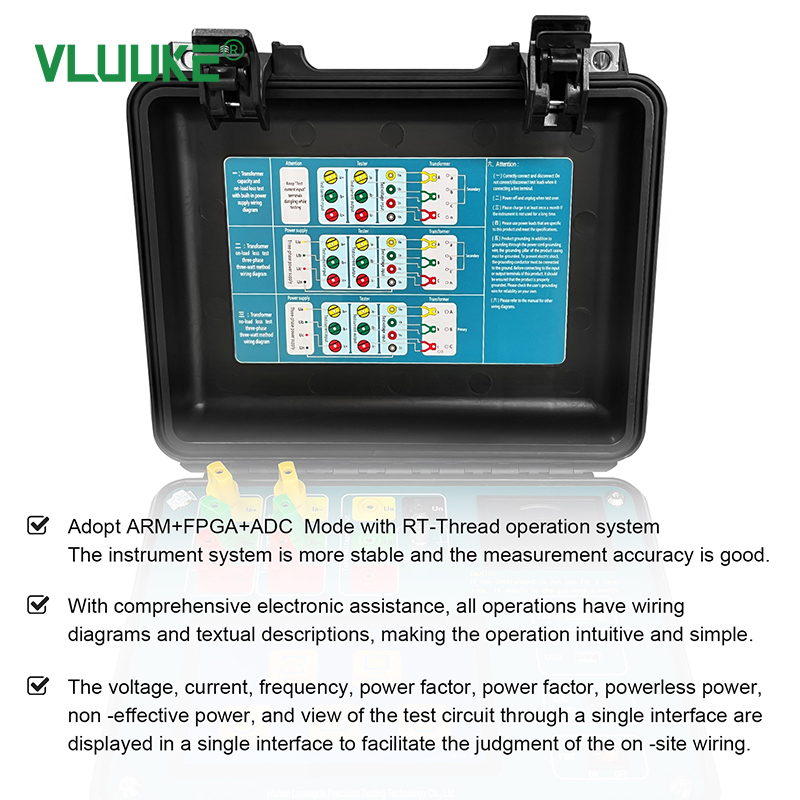

l Adopt ARM+FPGA+ADC Mode，with RT-Thread operation system，The instrument system is more stable and the measurement accuracy is good.

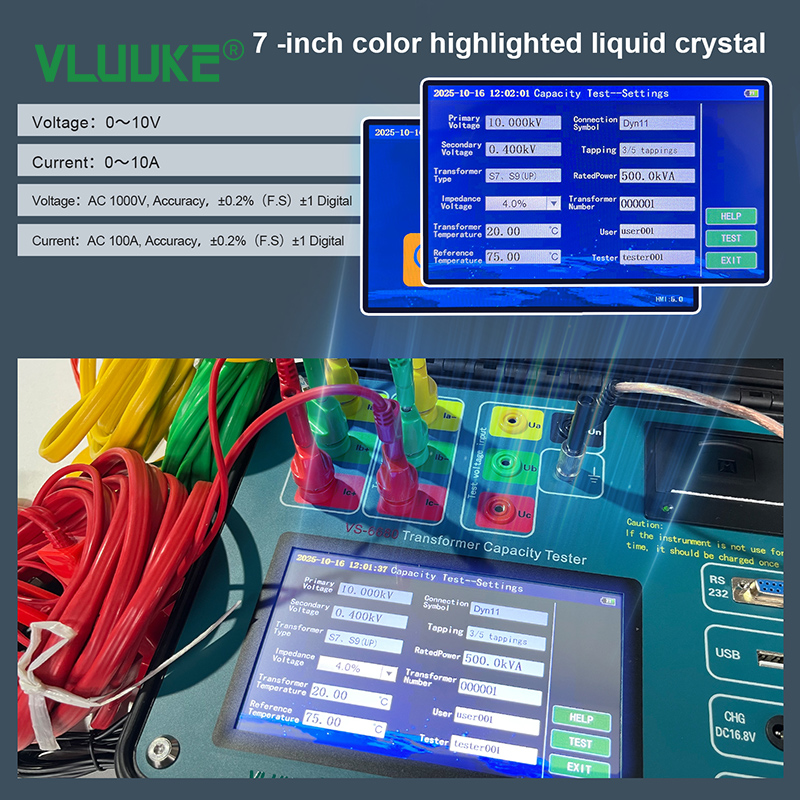

l 7 -inch color highlighted liquid crystal, icon touch interface. With comprehensive electronic help, all operations have wiring diagrams and text descriptions, and the operation is intuitive and simple.

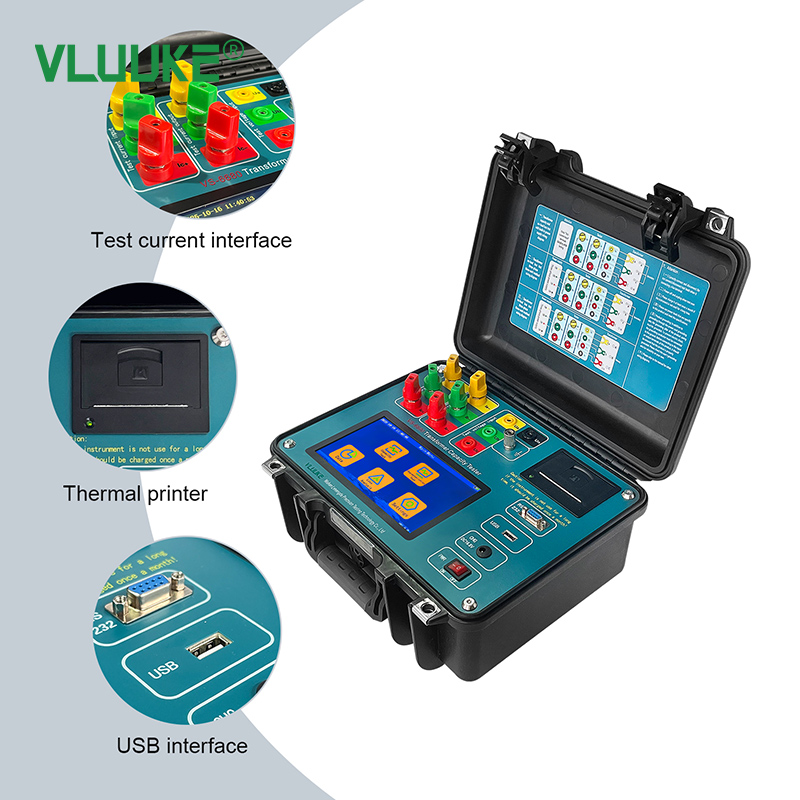

l Built -in large -capacity memory, which can store 1,000 groups of test data. USB portal communication, on -site test data can be saved, and can upload data to the PC according to customer needs.
l Integrated the mainstream cable (RS232) and wireless communication (Bluetooth) functions, which are convenient for data upload and remote control.
l Under each test interface, you can observe the waveform display of the real -time voltage channel and the current channel.
l The voltage, current, frequency, power factor, power factor, powerless power, non -effective power, and view of the test circuit through a single interface are displayed in a single interface to facilitate the judgment of the on -site wiring.

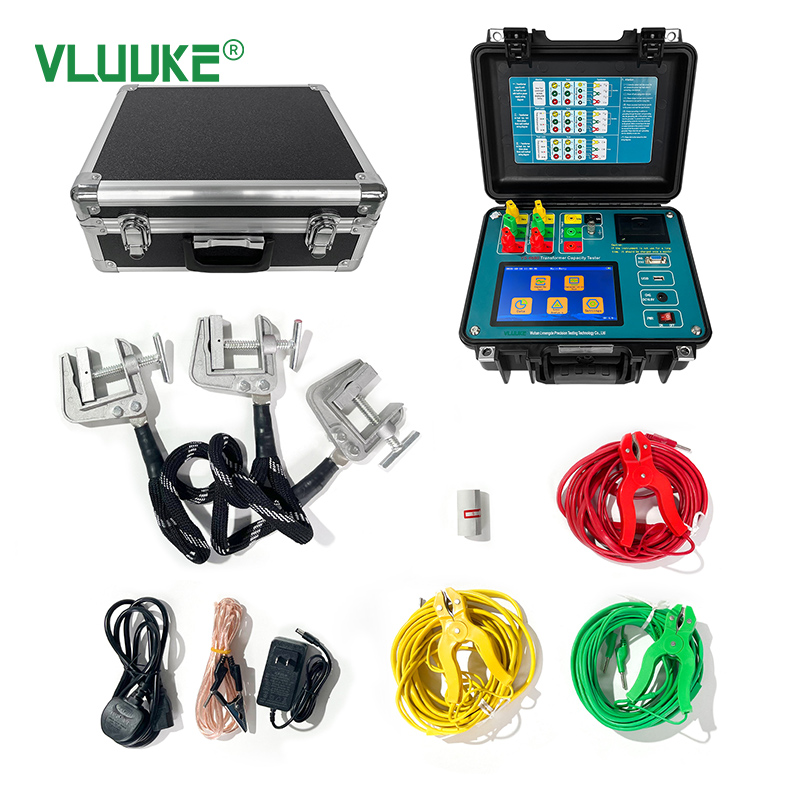

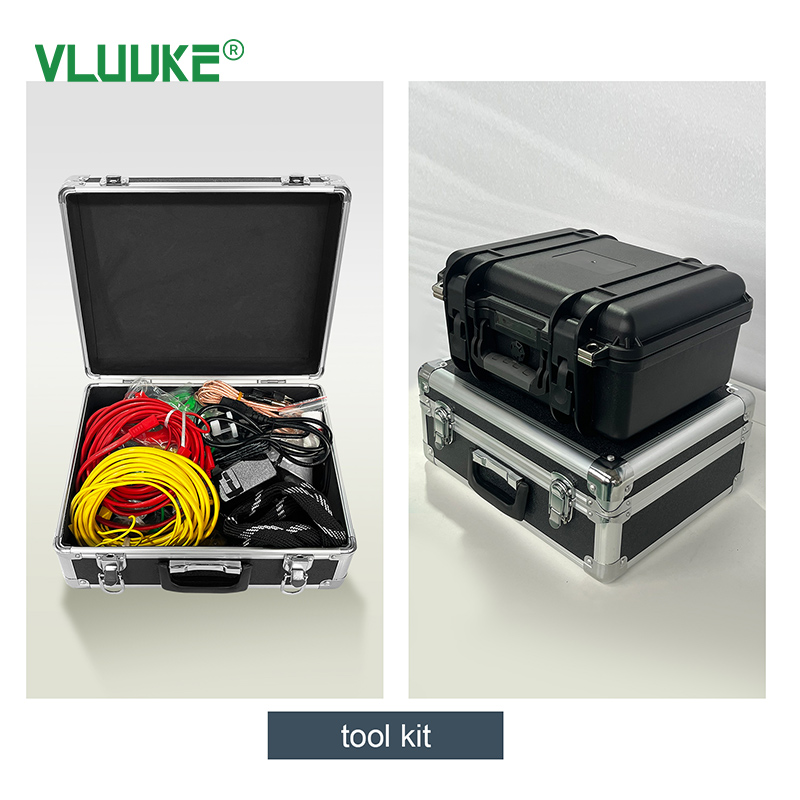

l The standard low -voltage short wiring is standard, which can be firmly connected to the measured transformer wiring column, which is convenient for on -site testing.
l You can measure the capacity of a variety of distribution and electrical transformers on the spot. There is no need to distribute another power supply, which is more convenient and faster to detec
l Based on the external power supply and equipment such as pressure regulation, voltage, lift, and flow, it can measure the characteristic data of the air load current, air load loss, impedance voltage, load loss and other transformer characteristics of various transformers.
l All test results are automatically corrected. You only need to enter related parameters (such as temperature, vacuum correction coefficient, etc.), and the instrument can automatically perform a variety of corrections such as: waveform deformed correction, temperature correction, non -rated voltage correction, non -rated current correction, etc. higher
l In the transformer characteristic measurement, the maximum voltage process can reach 1000V, the maximum volume of the current is 100A, and the internal protection circuit is equipped with a protective circuit. You do not need to switch the gear when measuring, you can ensure the measurement accuracy, let alone worry about burning the instrument because the gear selection is wrong.
