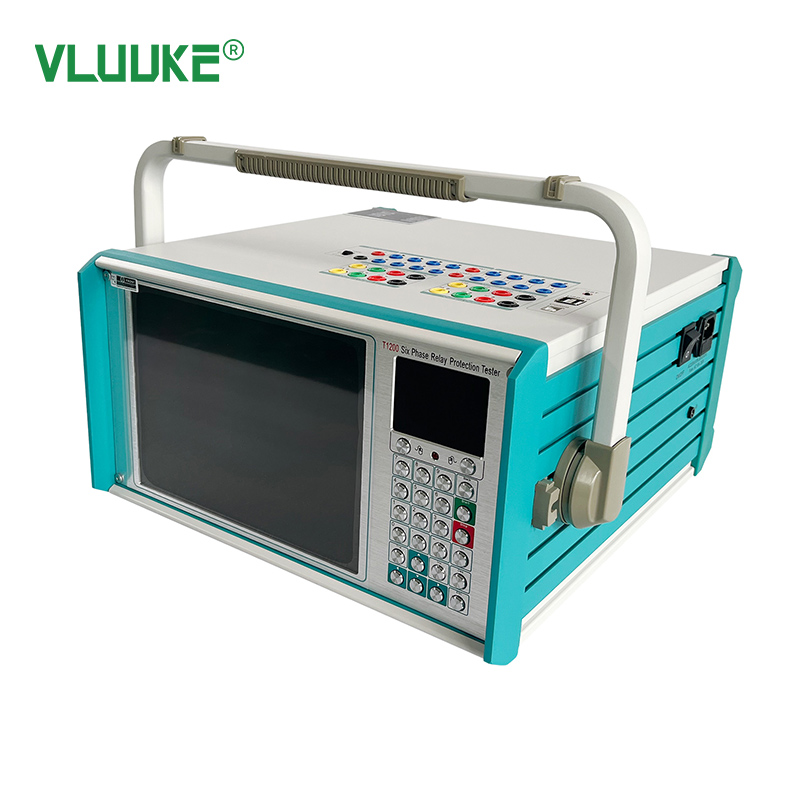

I. Product Overview
The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.Classic Windows XP operating interface, friendly man-machine interface, easy and fast to operate; High-performance embedded industrial control computer and 8.4 inch resolution of 800 × 600 TFT true color display which provides rich visual information, includes the current working condition and all kinds of help information.The software with self-calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy..
II. Features and Function

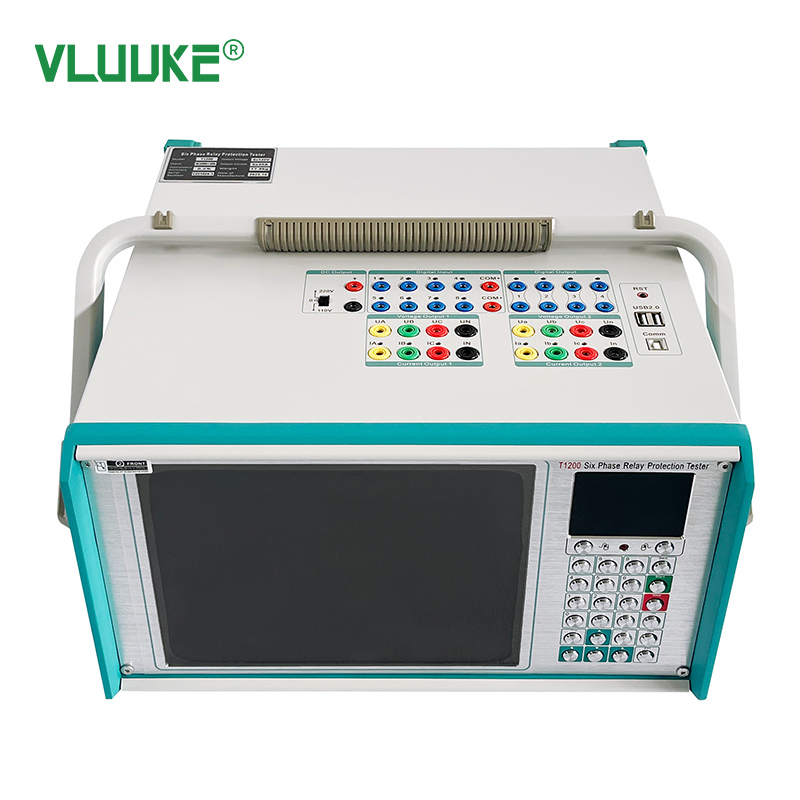

1.Meets all the requirement of field tests. This tester with standard 6 phase voltage, 6 phase current output, voltage 125V/phase,
current 30A/phase, 6 phases in parallel can up to 180A. Digital Signal Processor Microcomputer. Not only test the traditional
relays and protectors, but also test the modern microcomputer relays, special for transformer differential protection and transfer
equipment.
2.All technical indicators fully meet the standard DL/T624-1997: Technical condition of the relay computer test device.

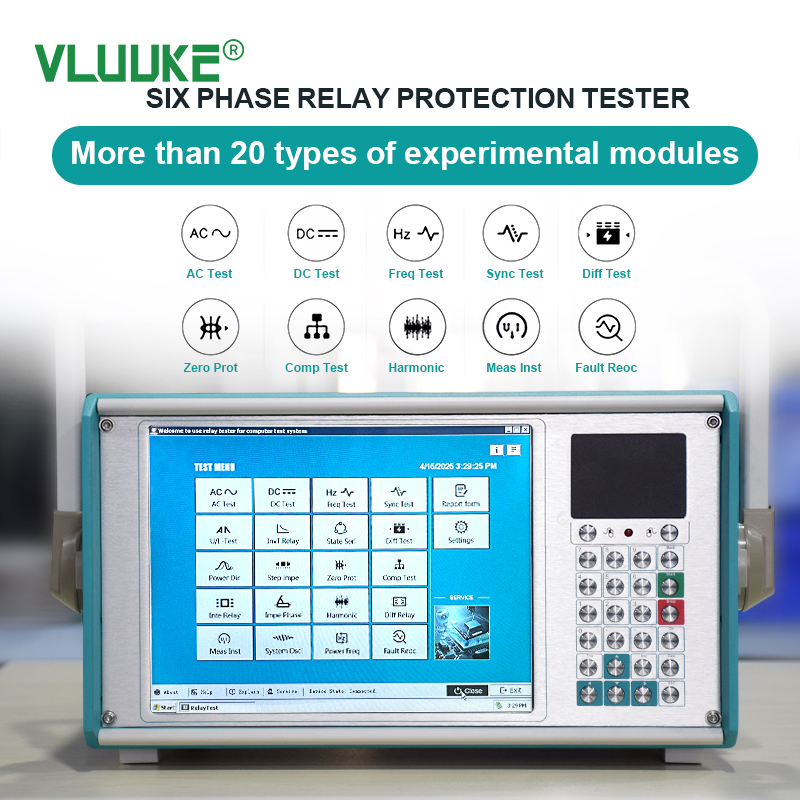

3.Classic Windows XP operating interface, friendly man-machine interface, easy and fast to operate; High-performance embedded
industrial control computer and 8.4 inch resolution of 800 × 600 TFT true color display which provides rich visual information,
includes the current working condition and all kinds of help information
4.The Windows XP system comes with the restore function; avoid system crashes caused due to illegal shutdown, or malfunction, etc.

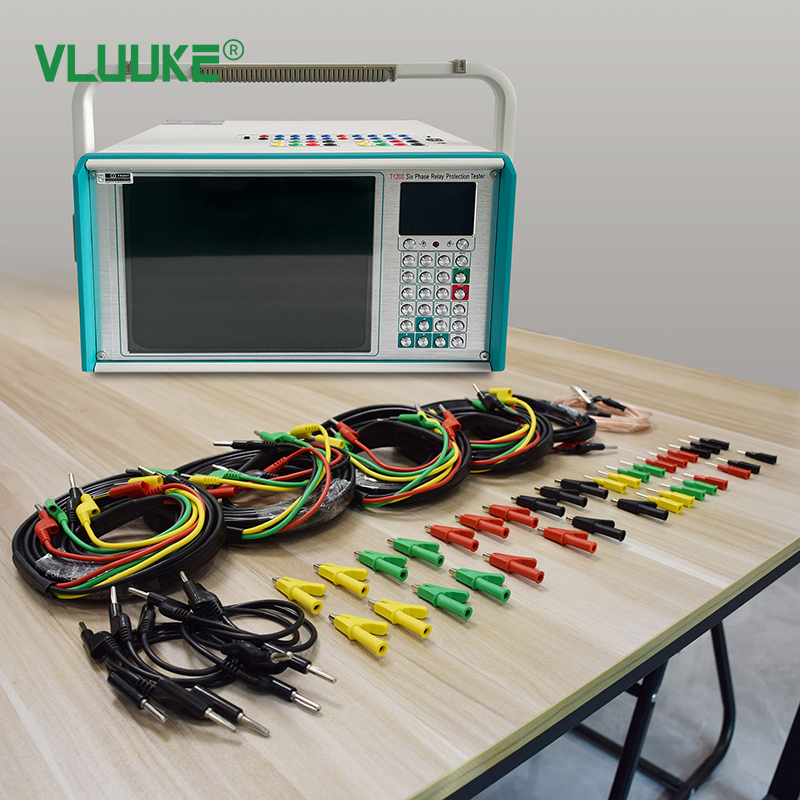

5.Equipped with ultra-thin industrial keyboard and optical mouse, complete a variety of operations using keyboard or mouse the
same as ordinary PC.
6.The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle
to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.
7.Using high-fidelity linear amplifier. Both to ensure the accuracy of a low current, but also guarantee the stability of the high
current.

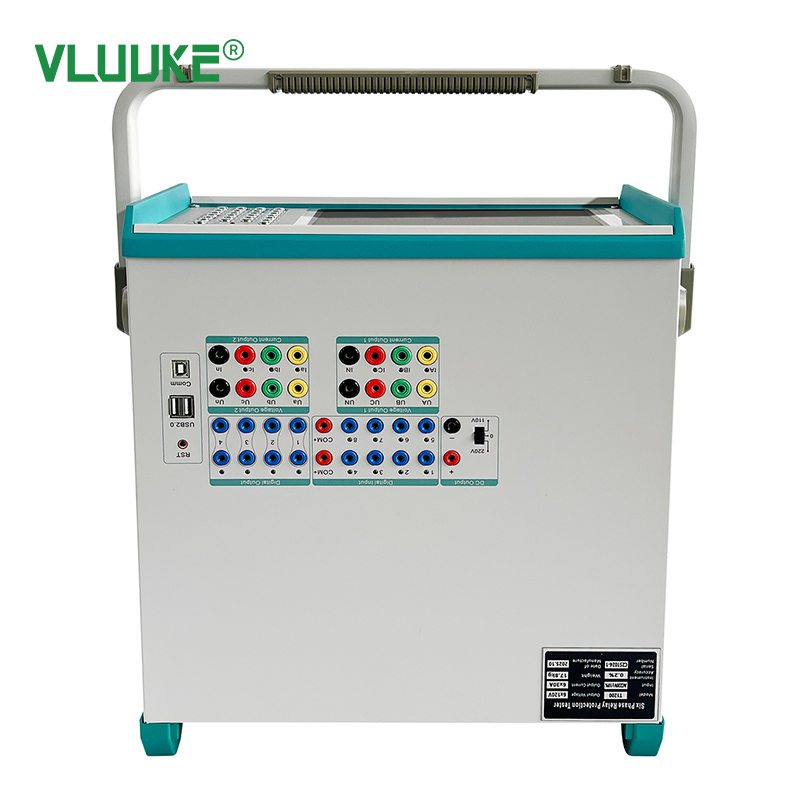

8.USB directly connect with PC, without any adapter cable, easy to use.
9.Can be connected to a laptop computer (optional).Laptop computers and industrial machines use the same software, no need to
re-learn the methods of operation.
10.With a separate DC auxiliary voltage source, output voltage 110V(2A),220V(1A), provides relays or protective devices which
require DC power.
11.The software with self-calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly
improve the stability of the accuracy.
