DDG-1000A PRIMARY CURRENT INJECTION TESTER is a large current test equipment for electrical testing, which is used in power plants, transformer stations, electrical manufacturers, scientific research, laboratories, etc. It belongs to short-time or intermittent work, and has the advantages of small size, light weight, good performance and easy to use.
1. Phase: single phase
2. Output current: AC 0~1000A
3. Opening voltage: 6V
4. Equipment capacity: 3kVA
5. Input voltage: AC 220V/75A/50Hz
6. Working time: 1000A Full load ≤30 minutes
7. Conductor: 600mm2, length 2.5m, 2 pieces
8. Accuracy: 1.0%
9. Weight: 30 kg
No. | Name | Qty. | Packaged or not |
1 | DDG-1000A | 1 | Y |
2 | Power cord (AC 220V/50Hz) | 1 | Y |
3 | Ground wire | 1 | Y |
4 | Instruction manual | 1 | Y |
5 | Certificate | 1 | Y |
6 | Inspection report | 1 | Y |

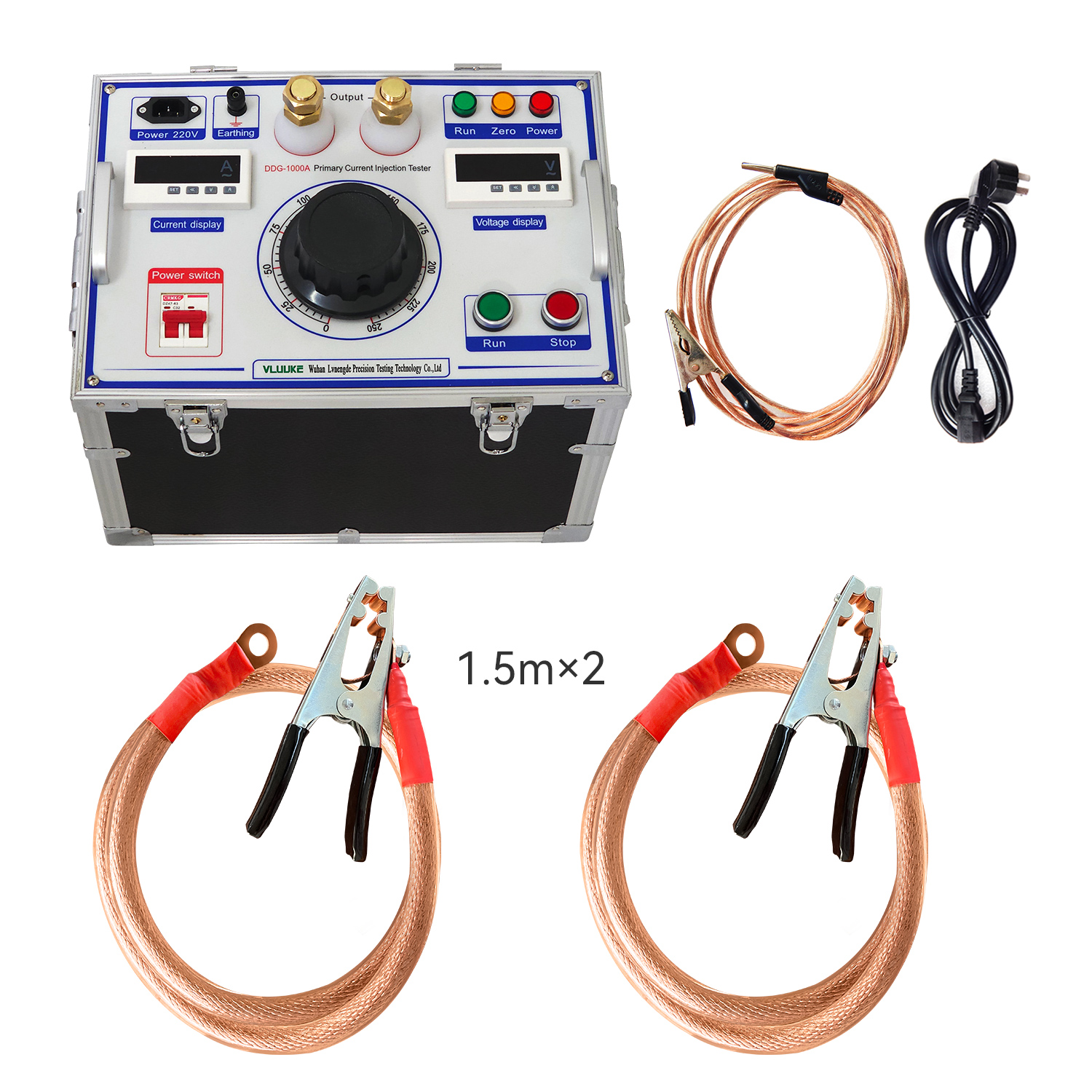

DDG-1000A Primary Current Injection Tester High Current Generator Current Injector
