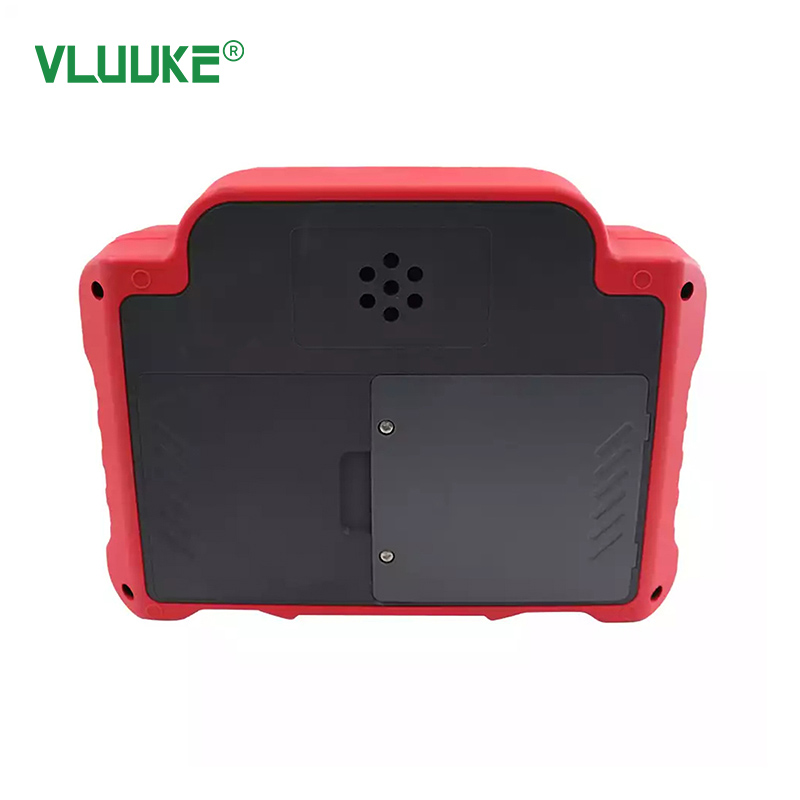

VK6030 Transformer Turns Ratio Tester

VK6030 transformer turns ratio tester adopts microprocessor technology for measurement calculation and automatic control, which can quickly and easily measure the actual transformer ratio and group. It is mainly used in the power industry to measure the transformer ratio and group, and at the same time,it is used by transformer manufacturers and distributors to measure the transformer parameters.

VK6030 transformer ratio tester consists of host, monitoring software,test line, communication line and so on. The host has a charging function without the need to find power on site, full-colour large-screen LCD display,the language can choose Chinese or English, at a glance, touch-screen operation is convenient and easy to use, the port anti-overload function,large-capacity storage of 500 groups of data. Upper computer software with historical data reading, access, save and other functions.

Function	It is mainly used for ratio and group testing of the three phase transformers,and single-phase transformers, PT and CT. This product can be used for blind testing of three phase transformers, as well as ratio and group testing of Z-type transformers.
Specimen type	Single phase transformer,three phase transformers ,Z -type transformers,PT,CT
Radio range	0.9~10000
Overload protection	Yes
Power source	DC9.6V 3800mAh high capacity lithium battery
Charging function	Yes
Display mode	5 inch touch screen（854dots×480dots）Full color LCD display
Mode of the interaction	Touch screen/buttons
LCD size	Length and width:108 mmx65mm
Instrument size	Length, width and height:229mmx166mmx74mm
Mobil APP	Yes ,Bluetooth connection
Computer host	Yes, USB line connection
Data storage	500group
Data access	Data access function
Battery voltage	Real-time display of battery level, indicating the need for timely charging when the battery voltage is low
Automatic switch off	Auto power off could be set for 1~30 minutes.
Power consumption	Standby:approx.2w(100% brightness)
Power consumption	Measurement:12 Max
Quality	Instrument :1.5kg (including battery)
Quality	Test line：1.7kg tester line:1.7kg
Working temperature and humidity	-10℃～40℃；70%rh below
Storage temperature and humidity	-20℃～60℃；70%rh below
Insulation resistance	10MΩ above(between circuit and housing)
Pressure resistance	AC 3700V/rms(between circuit and housing)
Electromagnetic property	IEC61010-4-3，radio frequency≤1V/m
Suitable for safety regulation	IEC61010-1、CAT Ⅲ 600V、pollution class2

instrument	1 pcs
test line	2 groups(red black each 10meters /group )
CD	1 pcs
Data cable	1 pcs(Type-C 1 meter)
charger	1 pcs(14.8V/1.5A)
introduction manual ,warranty certification	1 set
parcel	1 pcs
