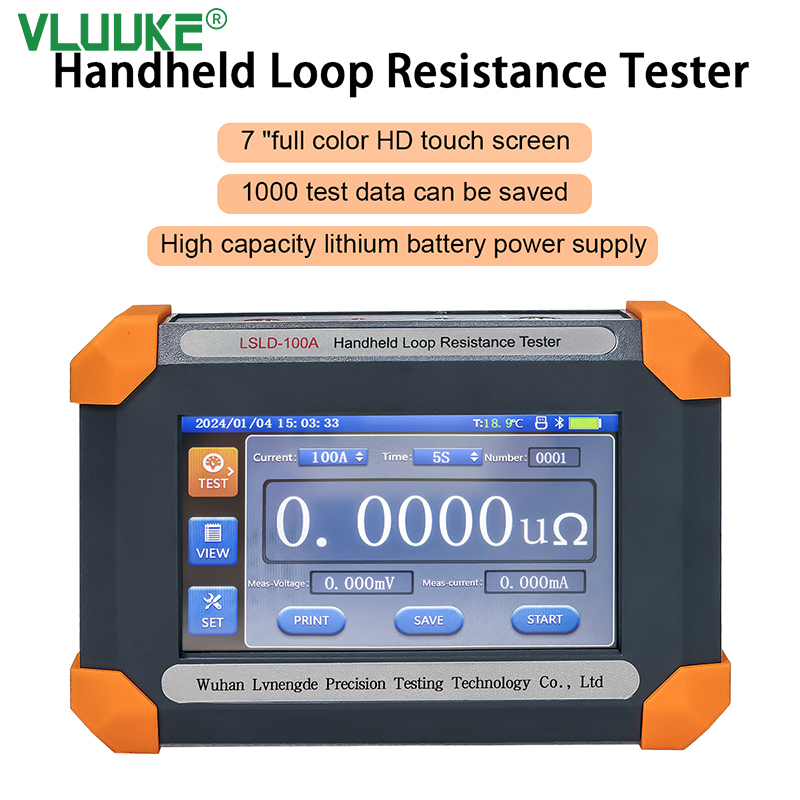

The LSLD-100A handheld circuit tester (hereinafter referred to as the instrument) is powered by a high capacity and high magnification lithium battery, with a compact design and handheld operation, making it easy to carry. A specialized testing equipment mainly used for measuring the contact resistance, loop resistance, and other micro ohmic resistance of switches, circuit breakers, and other equipment.

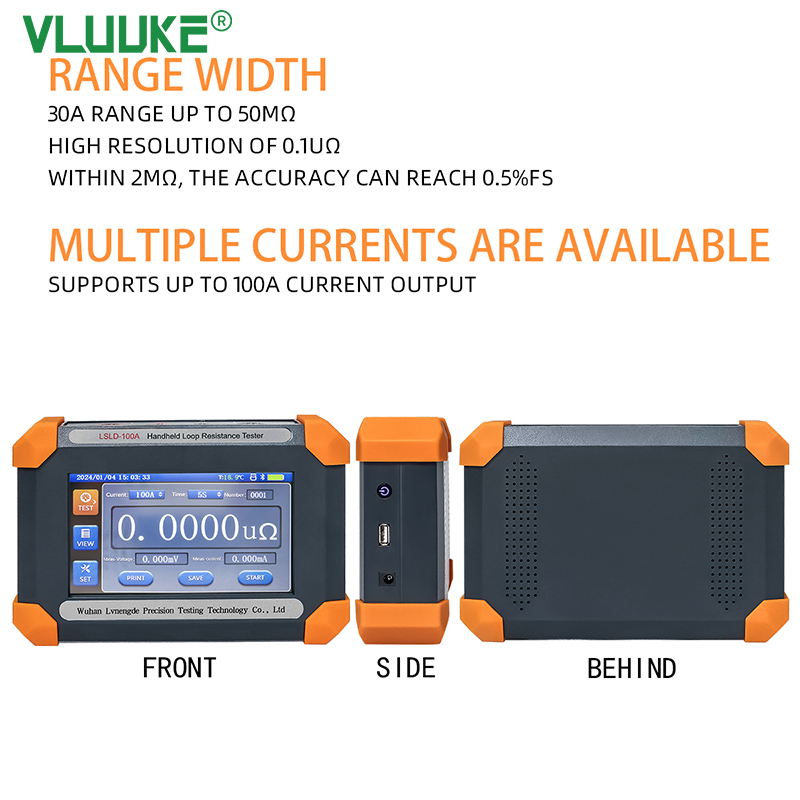

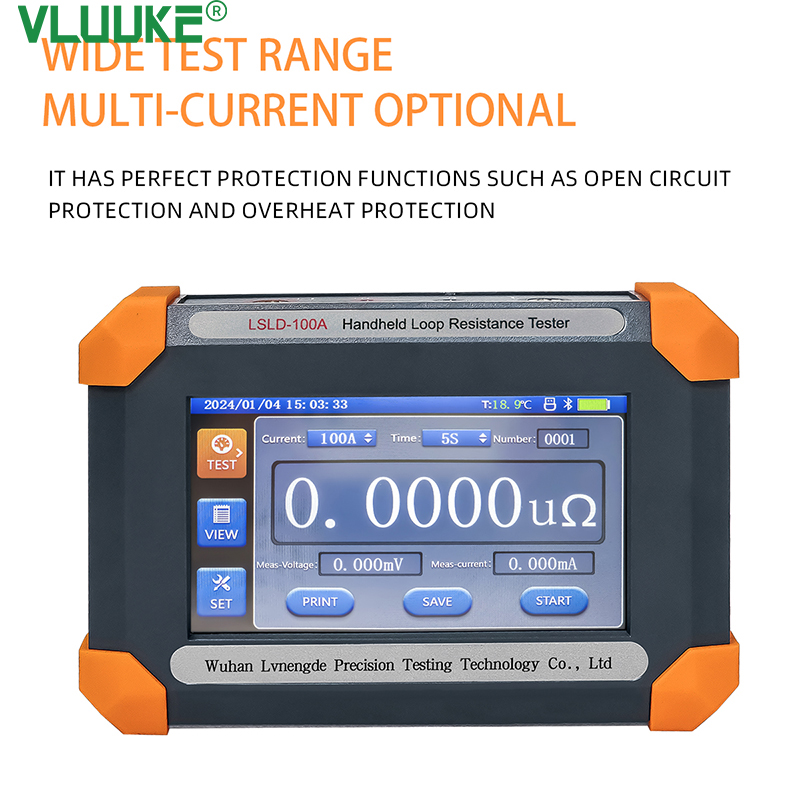

1、Measuring range：
Output current | Measuring range |
100A | 0~5mΩ |
80A | 0~10mΩ |
50A | 0~20mΩ |
30A | 0~50mΩ |
2、Output current：30A，50A，80A，100A optional
3、Test time：1s，5s，10s，30s，60s optional
4、Resolution ratio：0.01uΩ
5、Accuracy：0.5%±1uΩ
6、Maximum power：200W
7、Charging Voltage：DC12.6V
8、Number of tests：More than 600 times (fully charged, test time 1 second)
9、Test Line： resistance≤10mΩ

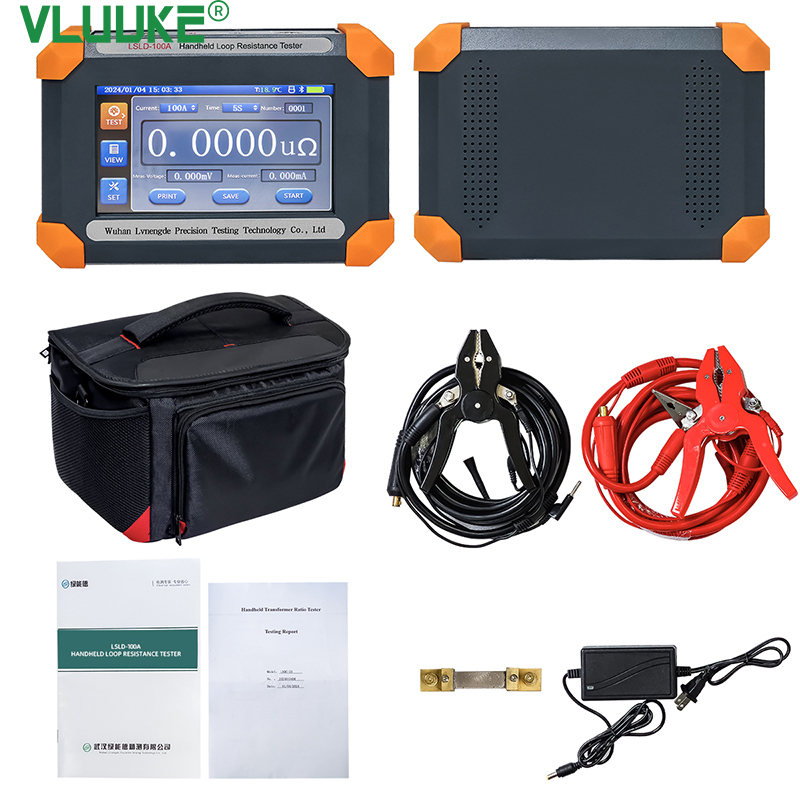

ITEM NAME | number |
Handheld circuit resistance tester host | 1 |
Test cable clamp (2 red and black) | 1 |
Standard resistance | 1 |
Charger DC12.6V2A | 1 |
Protective backpack | 1 |
Operation instructions | 1 |
Factory calibration table | 1 |
Certificate of conformity | 1 |

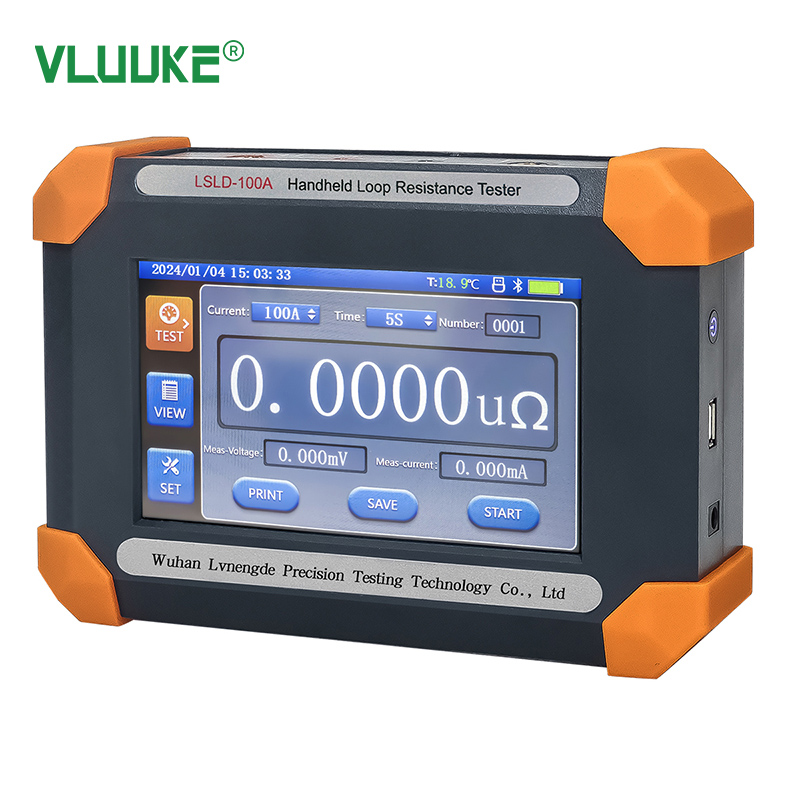

LSLD-100A Handheld Loop Resistance Tester
